Home>Products Introduction>Blown Film>Oscilating Tower

Blown Film

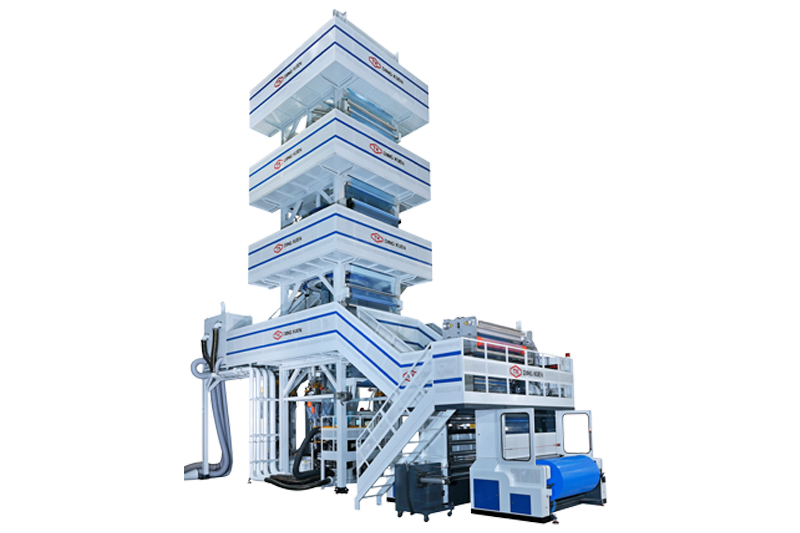

Oscilating Tower

Model: TK-HTRL

FEATURES

Multilayer blown film machines which make the films be stacked up to 3, 5 or even 7 layers. The high-quality design enables Diing kuen's equipment to precisely control the consistency of thickness and the mixing uniformity of raw materials.

CUSTOMIZATION:

We provide professional advice according to different customer needs, such as dynamic changes in the production site, different raw material characteristics and formulations, product uses, etc.



  • Description
  • Client Feedback
Description



APPLICATIONS:

Heavy duty bag, Shrink film, Flexible packaging film, Container Liner, Lamination film, Collation shrink film, Stretch hood film, Industrial packaging, Argriculture films, Geomembrane, Food vacuum packaging, Surface protection films, Transportation, etc.



FEATURES:

     Rapidly switching raw materials

             Reducing material waste and improving efficiency



     Equipped with auto resins formula control system

             Saving customer's formula as report automatically



     Automatic thickness control system

             Avoiding abnormality caused by environment or human



     Remote connection for adjustment from Taiwan side

             Providing instant technical services



     Automatically detect, correct, and update software





OPTIONS:

Corona treater

Gravematric dosing system

Internal bubble cooling device

Auto gauging control system

Back-to-back winder, etc


Specification

MONO LAYER

MODEL LAYFLAT WIDTH(MM) EXTRUSION OUTPUT (MAX. KG/HR) ※
TK-HTRL 900 550 ~ 850 m/m 220 KG/HR
TK-HTRL 1100 650 ~ 1000 m/m 285 KG/HR
TK-HTRL 1300 800 ~ 1200 m/m 315 KG/HR
TK-HTRL 1500 900 ~ 1350 m/m 350 KG/HR
TK-HTRL 1700 1000 ~ 1500 m/m 400 KG/HR
TK-HTRL 2000 1200 ~ 1800 m/m 450 KG/HR
TK-HTRL 2500 1600 ~ 2400 m/m 500 KG/HR
TK-HTRL 3000 1850 ~ 2800 m/m 550 KG/HR
TK-HTRL 4000 2500 ~ 3800 m/m 650 KG/HR

TWO LAYERS

MODEL LAYFLAT WIDTH(MM) EXTRUSION OUTPUT (MAX. KG/HR) ※
TK-HTRL 900-2C 550 ~ 850 m/m 220 KG/HR
TK-HTRL 1100-2C 650 ~ 1000 m/m 285 KG/HR
TK-HTRL 1300-2C 800 ~ 1200 m/m 330 KG/HR
TK-HTRL 1500-2C 900 ~ 1350 m/m 380 KG/HR
TK-HTRL 1700-2C 1000 ~ 1500 m/m 450 KG/HR
TK-HTRL 2000-2C 1200 ~ 1800 m/m 500 KG/HR
TK-HTRL 2500-2C 1600 ~ 2400 m/m 550 KG/HR
TK-HTRL 3000-2C 1850 ~ 2800 m/m 600 KG/HR
TK-HTRL 4000-2C 2500 ~ 3800 m/m 700 KG/HR



THREE LAYERS

Model Layout Width MAX.Extrusion Output
TK-HTRL 900-3C 550 ~ 850 m/m 220 KG/HR
TK-HTRL 1100-3C 650 ~ 1000 m/m 285 KG/HR
TK-HTRL 1300-3C 800 ~ 1200 m/m 340 KG/HR
TK-HTRL 1500-3C 900 ~ 1350 m/m 400 KG/HR
TK-HTRL 1700-3C 1000 ~ 1500 m/m 500 KG/HR
TK-HTRL 2000-3C 1200 ~ 1800 m/m 600 KG/HR
TK-HTRL 2500-3C 1600 ~ 2400 m/m 700 KG/HR
TK-HTRL 3000-3C 1850 ~ 2800 m/m 800 KG/HR
TK-HTRL 4000-3C 2500 ~ 3800 m/m 900 KG/HR
TK-HTRL 5300-3C 3800 ~ 5000 m/m 1100 KG/HR
TK-HTRL 6300-3C 4500 ~ 6000 m/m 1350 KG/HR

FIVE LAYERS

Model Layout Width MAX.Extrusion Output
TK-HTRL 900-5C 550 ~ 850 m/m 285 KG/HR
TK-HTRL 1100-5C 650 ~ 1000 m/m 380 KG/HR
TK-HTRL 1300-5C 800 ~ 1200 m/m 400 KG/HR
TK-HTRL 1500-5C 900 ~ 1350 m/m 450 KG/HR
TK-HTRL 1700-5C 1000 ~ 1500 m/m 600 KG/HR
TK-HTRL 2000-5C 1200 ~ 1800 m/m 700 KG/HR
TK-HTRL 2500-5C 1600 ~ 2400 m/m 800 KG/HR
TK-HTRL 3000-5C 1850 ~ 2800 m/m 900 KG/HR
TK-HTRL 4000-5C 2500 ~ 3800 m/m 1000 KG/HR
TK-HTRL 5300-5C 3800 ~ 5000 m/m 1350 KG/HR
TK-HTRL 6300-5C 4500 ~ 6000 m/m 1500 KG/HR

 ※ Real Capacity is depend on the film width, thickness and resin use

* Specifications are subject to change without notice.
